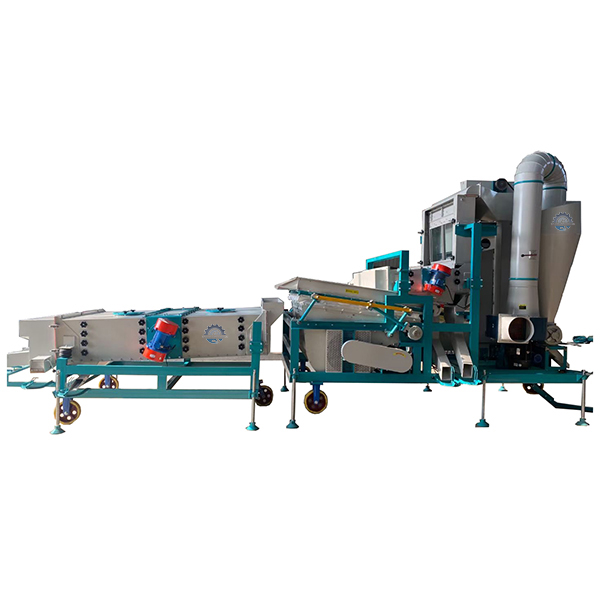

The corn cleaning machine is mainly used for grain selection and grading of wheat, corn, highland barley, soybean, rice, cotton seeds and other crops. It is a multi-purpose cleaning and screening machine. Its main fan is composed of gravity separation table, fan, suction duct and screen box, which is convenient and flexible to move, easy to replace the screen, and has good performance. This machine screens grain crops such as corn and wheat with a select cleanliness of 98% and 25 tons per hour.
The machine can be divided into two layers, the first layer is mainly used to clean shells, the second layer rods and other large impurities, the second layer of screen is for clean grain, dust grains will fall into the bottom of the box from the gap of the screen, and be discharged to the bottom of the box. Impurity outlet. It integrates various impurity removal methods such as specific gravity separation, air separation and sieving, and handles various impurities in grains in different ways, and can collect different impurities separately. The design of this machine is novel and reasonable, and it uses a variety of technologies. Can be used with conveyors and elevators.
When using, first place the machine in a horizontal position, turn on the power, start the working switch, and ensure that the motor runs clockwise to show that the machine is in the correct working state. Then pour the screened material into the hopper, and adjust the plug plate at the bottom of the hopper according to the particle size of the material so that the material can evenly enter the upper screen; at the same time, the cylinder fan on the upper part of the screen can correctly supply air to the discharge end of the screen. ; The air inlet at the lower end of the fan can also be directly connected to the cloth bag to receive light miscellaneous waste in the grain. The lower part of the vibrating screen has four bearings fixed in the channel steel on the frame for linear reciprocating motion; the upper coarse sieve of the sieve is used to clean large particles of impurities in the material, while the lower layer of fine sieve is used to clean small particles of impurities in the material. The main advantages of wheat and corn cleaning machine are as follows:
1. High efficiency, exquisite and durable design, any powder and mucus can be screened.
2. It is small in size, does not take up space, and is more convenient to move.
3. It has the characteristics of easy screen replacement, simple operation and convenient cleaning.
4. The mesh is not blocked, the powder is not flying, and can be sieved to 500 mesh or 0.028mm.
5. Impurities and coarse materials are automatically discharged, and continuous operation is possible.
6. Unique mesh frame design, the screen mesh can be used for a long time, and the mesh changing speed is fast, it only takes 3-5 minutes.
7. It can be restructured according to the actual needs of customers, such as adding edge type, adding gate type, water spray type, scraper type, etc.
8. The sieve machine can reach five layers, and it is recommended to use three layers.
Post time: Mar-02-2023
