High performance Air-screen Cleaner

Air Screen Cleaner Applications:
Air screen cleaner is widely used in seed processing and agricultural products processing industry. Air screen cleaner is suitable for a variety of materials, such as corn, mung beans, wheat, sesame and other seeds and beans. Air screen cleaner can clean the dust and light impurities, and clean the big and small impurities and classify the material to big ,medium and small size with different sieves.

Air Screen Cleaner Structure：

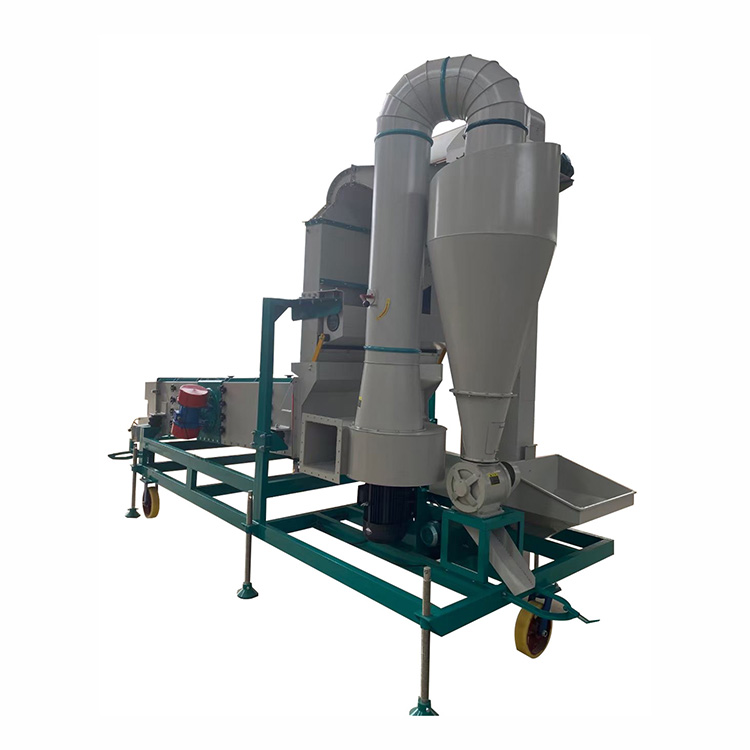

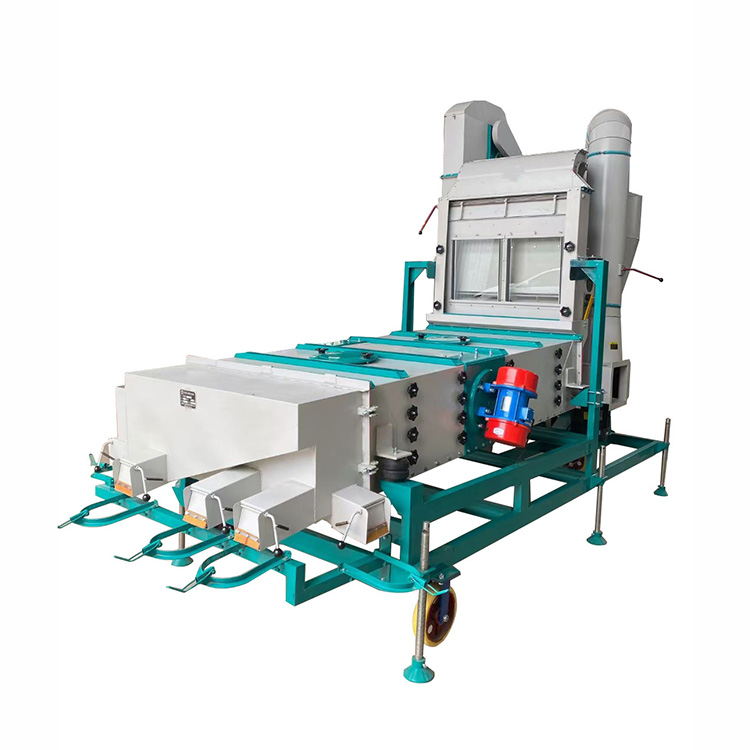

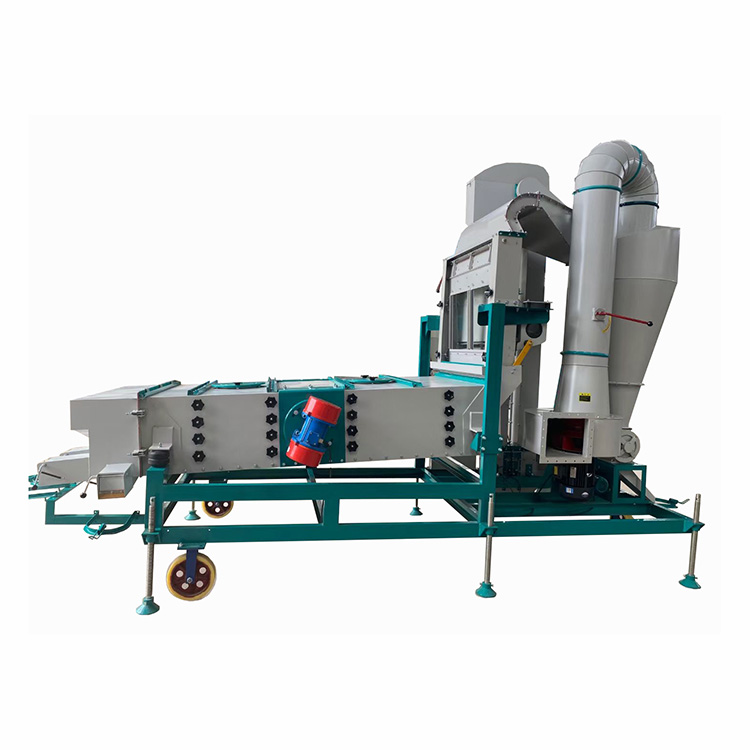

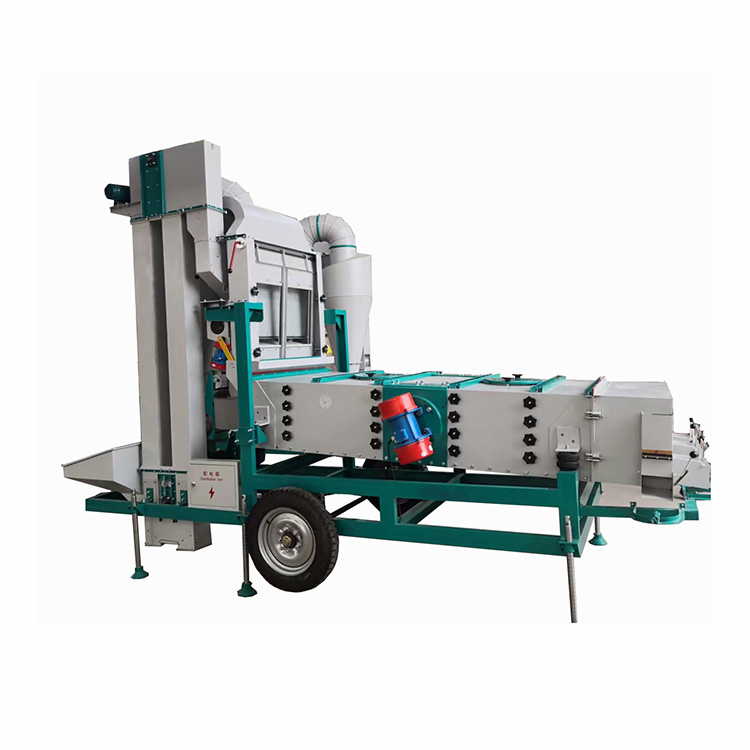

Air screen cleaner consists of Bucket Elevator, Dust Catcher (cyclone), Vertical Screen, vibration Sieve grader and Grain Exits.

Air Screen Cleaner Processing Works:
The materials are fed from the elevator feeding hopper, and then lifted by the elevator into the bulk grain box. In the bulk grain box, the materials are evenly dispersed and then enter the air screen. The vertical air screen and cyclone will clean light impurities, and the vibration grader can classify the materials and remove large and small impurities at the same time. Finally, the grains are sorted and discharged from the grain outlet box for bagging or entered into the grain trough for further processing.

Air Screen Cleaner Advantages：
1.The material can be classified into big, medium and small particles with different layers(different size) of sieves
2.5-10T/H cleaning capacity.
3.We use TR bearings, they have a longer service life.
4.We use stainless steel woven mesh table food grade, and all contact areas are food grade materials.
5.Low-speed, damage-free elevator.
6.We use the best motors in China, it has high quality and longer service life.
7.Easy to move and operate with high performance .
8.Enhances the quality of harvested products by removing unwanted materials, increases the purity of seeds.
9.Improves overall seed and grain processing efficiency.
