In order to improve production efficiency, the preparation silo configured above the mixer, so that there is always a batch of prepared materials waiting to be mixed, can improve the production efficiency by 30%, so as to reflect the advantages of the high-efficiency mixer. Secondly, the material will form an air arch and is not easy to unload, and the silo should be equipped with a flow cushion or vibration motor; In order to overhaul and seal, the silo mouth should be equipped with pneumatic or manual valves; For smooth unloading, the angle of the bin cone should not be less than 60 degrees.
In order to fully reflect the advantages of the high-efficiency mixer, a premix silo is added, and a vibration motor or an air-assist air cushion is configured according to the size of the silo to prevent the material from bridging; Pneumatic butterfly valve is configured at the connection with the mixer, which has good sealing performance and effectively controls dust; The admixture feeding hopper is set with a dust collection port, which solves the problem of dust flying when the valve is opened.
The linear funnel has a simple structure and is commonly used. The inclination angle θ between the straight bucket wall and the horizontal section is a fixed value, and the funnel section shrinks sharply when the material in the hopper flows to the discharge port under its own weight, and the arrangement of the material particles changes sharply and squeezes each other during the flow process, resulting in a large internal friction resistance, and there is also frictional resistance between the material and the bucket wall. The superposition of these two types of resistance forms a section with concentrated resistance above the discharge port, which slows down the discharge speed of the material. When these resistances are balanced with the gravity of the material, the material cannot be discharged from the flow and arched and blocked. Therefore, most of the linear funnels are equipped with arch breaking equipment, and the arch is broken by external force to ensure the discharge operation.

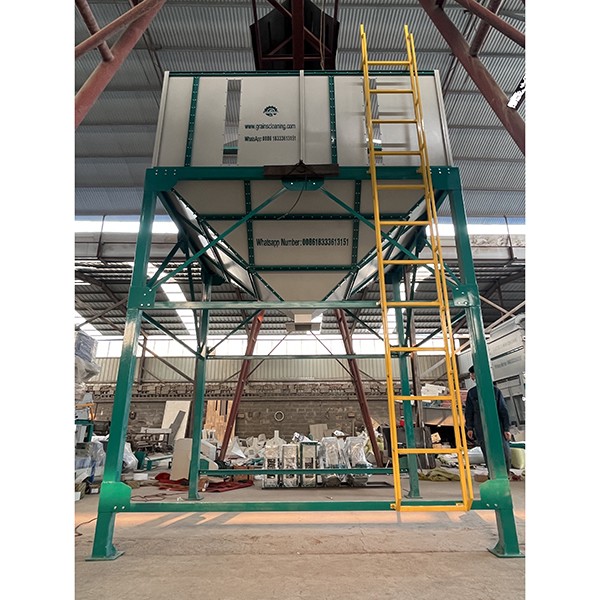

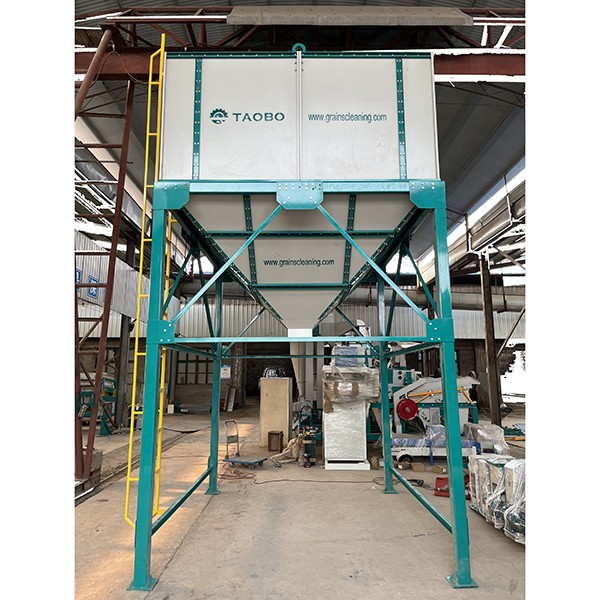

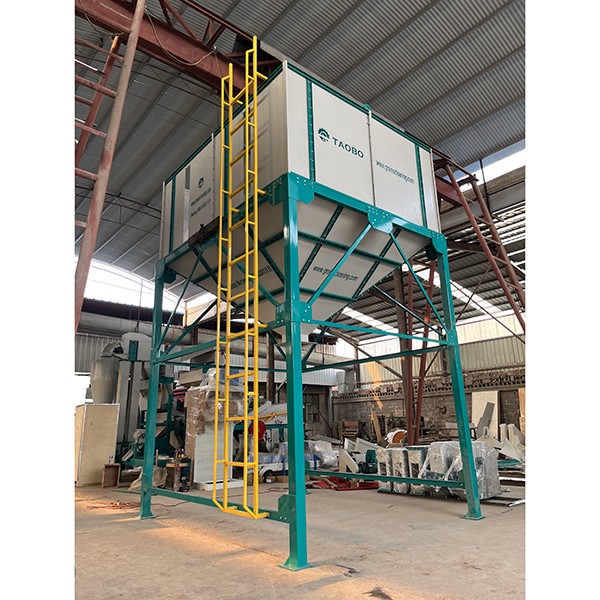

Our company can customize various specifications of silos, we also have mechanical products to match with silos.
Post time: Jan-04-2023
