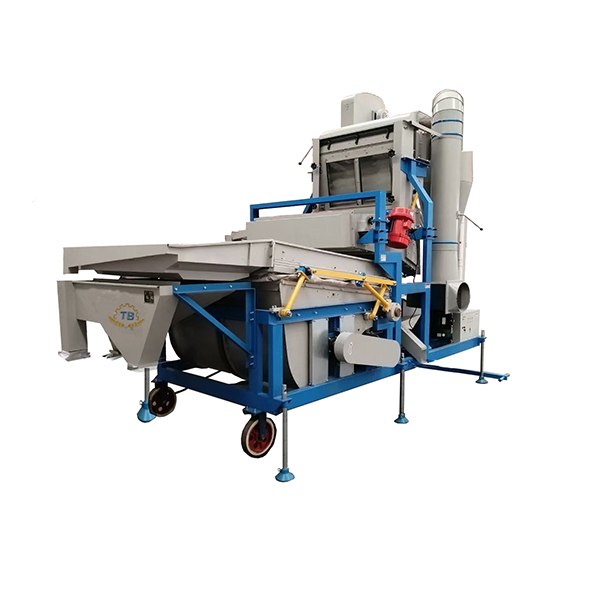

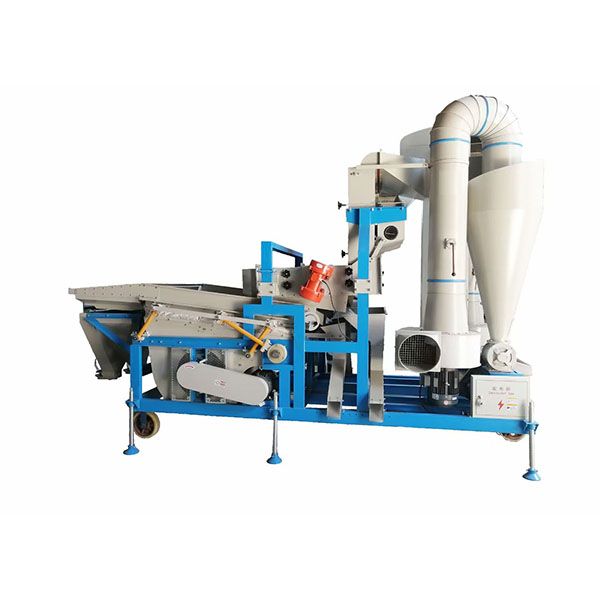

Air sieve specific gravity cleaning machine is a kind of primary selection and cleaning equipment, which is mainly used for wool grain processing, and is characterized by large output.
The main structure of the machine includes frame, hoist, air separator, vibrating screen, specific gravity table, air chamber, environmental protection dust removal system, etc.; after the raw materials are fed by the elevator, they first pass through the air separator to remove dust and light impurities; After entering the vibrating screen, the function of the vibrating screen is to remove large and small impurities through the sieve holes; after vibrating and screening, the material enters the specific gravity workbench, and the function of the specific gravity workbench is to remove seeds, buds, and insects through the action of wind force and vibration friction force. Worm grains, moldy grains, smut grains, immature grains and other bad grains; here the material processing is completed; the air chamber is a system for supplying air to the specific gravity workbench.
Machine composition:
It is composed of air screen,front screen,gravity table,bucket elevator,back screen,products outlet.
Working principle:
First, the material passes through the bulk grain box, and goes up and down to the bulk grain box. The material acts as a uniform waterfall surface and enters into the vertical air sieve. Sieve sieve sieve sieve sieve sieve bulk grain box specific gravity specific gravity platform miscellaneous outlet discharge discharge discharge discharge discharge.
Product advantages:
1. Equipped with complete winnowing and dust removal devices, which can effectively collect dust and light impurities, and have good environmental protection, so as to avoid the working environment from being polluted;
2. Integrating wind selection, screening, and specific gravity selection into one body, reducing labor, saving space, saving energy and reducing consumption;
3. It is suitable for the processing of various materials, and can replace selected equipment for occasions where the cleanliness requirements are not high;
4. The screening is driven by a vibration motor, and the specific gravity selection is driven by an eccentric motor. The two vibration sources are independent of each other and have good stability;
5. The hoist adopts an ultra-low-speed non-breaking hoist, and the belt speed is less than 0.5 m/s, which minimizes the crushing loss;
6. First screen to remove large and small impurities, and then pass through the specific gravity table, which can reduce the processing pressure of the specific gravity table and increase the output and clarity;
7. The finished product outlet of the machine can be connected with vibrating grading screens of different lengths.
Scope of application：
Applicable to wheat, corn, soybean, sesame, mung bean cleaning and processing of cashew nuts, coffee beans and other food crops, oil crops, and various beans.
#Beans #Sesame #Grains #Maize #Cleaner #Seed
Post time: Jan-06-2023
